01

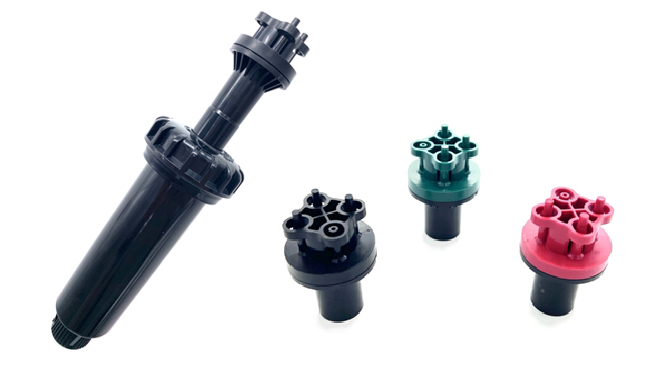

4-Outlet Pressure Compensating Drip Manifold

DRIP & MICRO IRRIGATION  ·  PD-5215 / PD-5225 / PD-5245

THE PROBLEM  ·  One outlet, four thirsty plants — and no budget to re-trench the zone.

Turns a single irrigation point into four controlled low-flow outlets, so one source can feed four individual plants, shrubs or containers. The pressure-compensating design holds flow steady from every outlet through normal pressure swings. Its biggest advantage is retrofit: an existing pop-up sprinkler or shrub head converts to targeted root-zone drip with minimal disruption to the landscape.

02

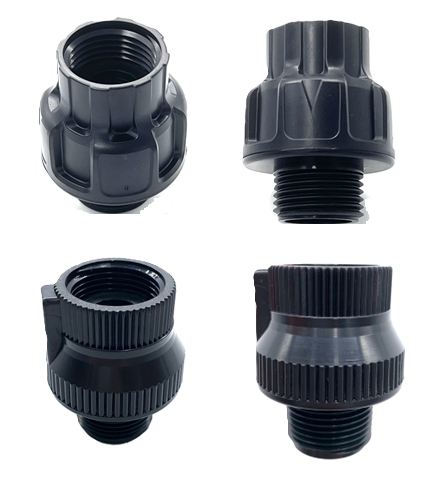

Flowguard™ Check Valve Adapter & Anti-Siphon Adapters

BACKFLOW PROTECTION  ·  NEW PD-8110 / PD-8210  ·  ANTI-SIPHON PD-8100 / PD-8200 / PD-8205

THE PROBLEM  ·  Muddy water siphoning back into your emitters every time a zone shuts off.

Two complementary families for keeping water moving one way. The newly developed Flowguard is a one-way check valve adapter built for drip systems: it stops reverse flow when pressure drops or zones switch, keeping dirty or muddy water from travelling back into emitters, filters and valves. Its high-impact ABS body handles up to 100 PSI and 17 GPM. The proven Anti-Siphon series covers standard outdoor hose faucets.

03

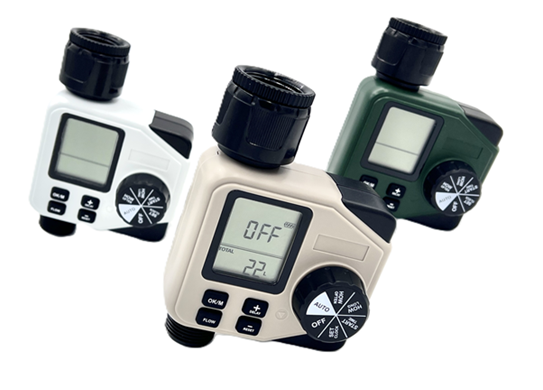

Irrigation LCD Timer with Flow Monitoring

GARDEN HOSE-END  ·  PW-6500 / PW-6550  ·  PW-6501 / PW-6551 (FLOW MONITORING)

THE PROBLEM  ·  You know how long a zone ran. You have no idea how much water it actually used.

One of the smallest timers on the market with a built-in flow sensor. It records single-use and cumulative water consumption, and lets users switch between time-based and volume-based watering — irrigation stops automatically once the preset volume is reached. A rotary dial and LCD keep programming simple: start time, duration and frequency, from hourly to weekly. Manual mode and 24 / 48 / 72-hour delay handle rain and seasonal changes.

04

Pressure Compensating Emitters

DRIP & MICRO IRRIGATION  ·  PD-0305 / PD-0310 / PD-0320 / PD-0340

THE PROBLEM  ·  The last plant on the run gets half the water the first one gets.

Four colour-coded flow rates in one compact body, for low-volume irrigation where uniform delivery matters — landscapes, nurseries, greenhouses and container growing. The pressure-compensating mechanism holds output stable across normal pressure variation, so the last emitter on a run performs like the first. Red 0.5 GPH, Black 1 GPH, Green 2 GPH, Brick Red 4 GPH.

05

Streamline Pop-up Sprinkler

UNDERGROUND WATERING  ·  PL-047x SERIES (4")  ·  PL-067x SERIES (6")

THE PROBLEM  ·  Low-head drainage puddling at the bottom of the slope, misting at the top.

Built for consistent, large-area coverage across landscape, turf and commercial installations. Integrated 30 or 40 PSI pressure regulation holds outlet pressure stable, cutting misting and improving distribution uniformity. Selected models add a check valve that stops low-head drainage on slopes, and Stop Flow versions shut the water off automatically if a nozzle is damaged or removed. The ratcheting riser aligns spray patterns by hand, no tools needed.
